Full-automatic TCT Processing System

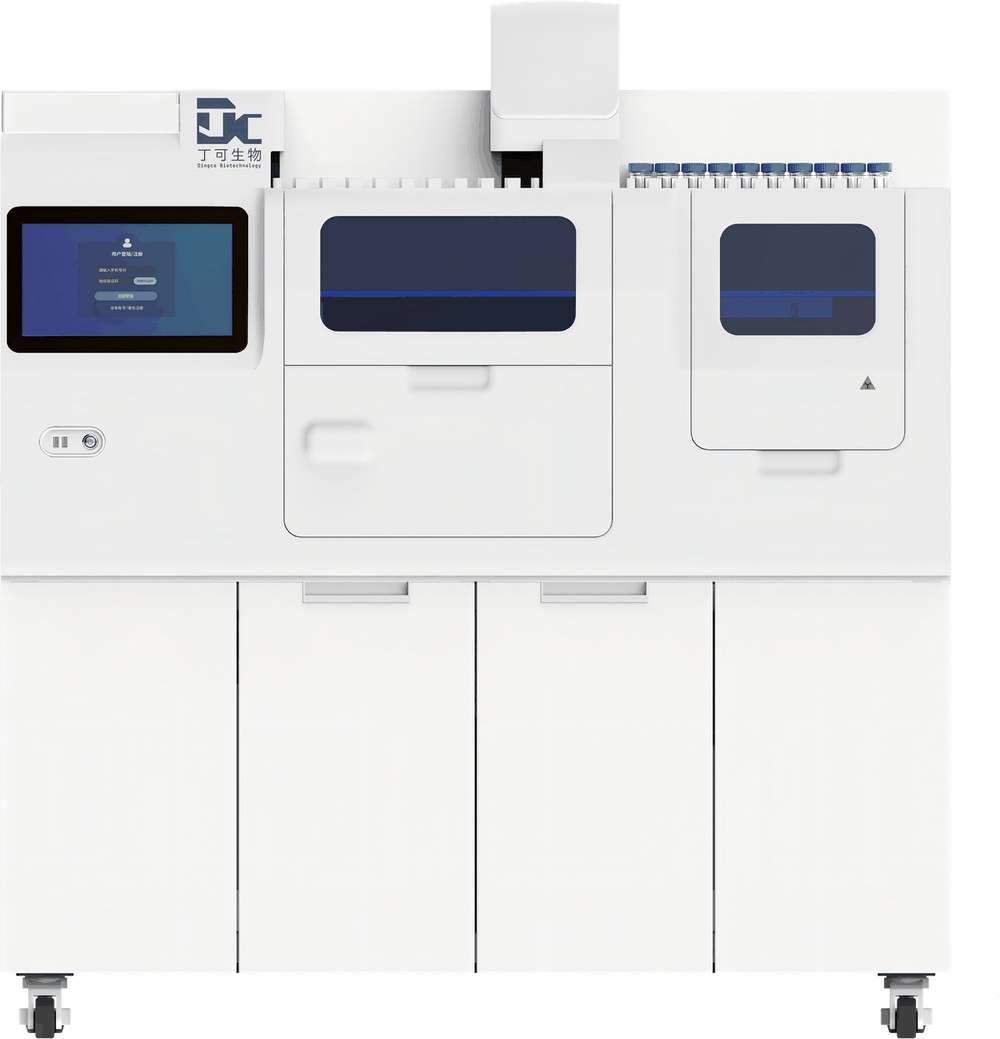

Liquid-based cytology with natural sedimentation — two models: DC120 for high-throughput laboratories, DC40 for compact benchtop workflows.
Request information
Choose a Model
Both models use the same liquid-based cytology principle and natural sedimentation preparation. They differ in throughput, form factor and dedicated STAT positions.
Specifications
| Specification | DC120 | DC40 |
|---|---|---|
| Throughput | 120 slides/hour | 40 slides/hour |
| Samples in parallel | 50 (continuous loading) | 50 |
| Chamber auto-sorting capacity | ≥300 | ≥150 |
| Slide / coverslip loading | ≥100 / ≥250 | ≥100 / ≥250 |
| Slide collection | 120 slides | 90 slides |
| STAT positions | — | 10 |
| Diagnostic area | ~15 mm in diameter | ~15 mm in diameter |
| Auto loading / preparation / staining / coverslipping | √ | √ |
| Auto slide barcoding | √ | √ |
| LIS/HIS connectivity | √ | √ |
| Manual intervention | No manual intervention required during the automated run; operator attention is needed for exceptions such as jams or faults. | |
| Form factor | Floor-standing | Benchtop |
Note: Specifications above are for reference and may differ by configuration. Please confirm the exact configuration for your laboratory before ordering.
How It Works
Liquid-based cytology with natural sedimentation, from specimen loading through to coverslipping.
Sample Handling
Load primary tubes directly. The system performs automated loading, sedimentation preparation, barcoding, staining and coverslipping within one instrument.
Cross-Contamination Control
Disposable sedimentation chambers — one chamber per sample; four alternating sampling probes with triple cleaning cycles.
Applied Sample Types
Gynecological and non-gynecological exfoliated cytology, including cervical screening (TCT), pleural and ascitic fluids, urine and sputum.
Key Features
High Throughput
Up to 120 slides/hour for high-volume laboratories.
Ease of Use
Random-access loading, LIS/HIS connectivity, on-site fault recovery and power-off memory.
Reliability
Fully automated dripping stain, disposable sedimentation chambers, 100 μl pipetting precision, triple self-cleaning sample probes.
Full Automation
Automatic sample scanning and slide barcoding, automated chamber handling, preparation and staining.
Reagents & Consumables
Cell preservation solution
Preserves cell morphology; mucolysis and RBC lysis; long shelf life.
Disposable sedimentation chamber
One chamber per sample.
Adhesive slides
Strong adhesion, minimal cell loss.
Pap staining reagents
Rich staining with clear N/C contrast and stable performance.
Preparation Results
Pap-stained slides show a homogeneous monolayer with clear nuclear-cytoplasmic contrast.
Request Documentation or a Quotation
Product datasheets for the DC120 and DC40 are available on request. Tell us your laboratory's expected throughput and sample types, and we will advise on the suitable configuration.
Product documentation
Please contact us to request the datasheet for your model.
Configuration advice
We will help match throughput, chamber capacity and STAT needs to your workload.
Installation & training
Ask us about installation, operator training and after-sales service in your region.
Contact: Mr. Zhao Peng · zp18971337447@gmail.com · +86 189 7133 7447 · WhatsApp
